Nose landing gear update 5

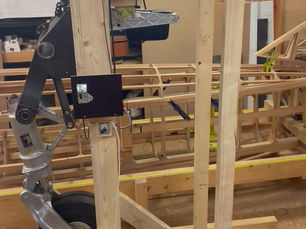

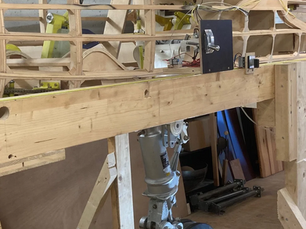

The new desing of the nose landing gear retraction mechanics requires the installation of a lock to keep it in the up position. Looking around
The new desing of the nose landing gear retraction mechanics requires the installation of a lock to keep it in the up position. Looking around

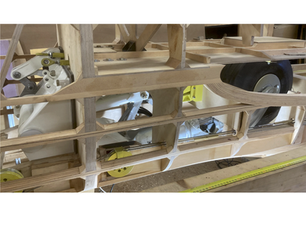

The main components of the nose landing gear and the retraction mechanism are assembled. After having the parts heat treated for stress relief it was
Another welding job done. It connects to the rotating shaft at the main support at the top with the Vampire gear assembly at the bottom.
Right on time for Christmas, the welding job for the nose landing gear main support is complete! Of course it didn’t work without building a
The construction of the front wheel components is in full swing. The first part, the upper gear leg section, required a welding jig to be

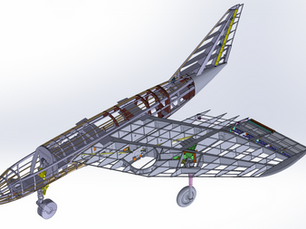

The past few weeks I focused on engineering work. Since the original nose landing gear retraction system proved to be problematic it needed to be
The attachment of the vertical fin is completed.The exact positioning was done by the help of a laser beam before the holes were drilled. That’s
The bottom bearing of the rudder also carries the pulleys for the cables. It is a fairly complicated structure built from 1.0mm CrMo sheet metal.
The hint from a good old Air Force colleague sounded very promising. According to him there is a familiar looking nose gear on exhibit at
The vertical stabiliser forward attachment brackets are completed and installed.The next building step will be the attachment of the vertical stabiliser spar to the fuselage.
