Fuselage main structure complete

Bulkheads, longerons, stringers and corner blocks are all installed, contour ground to shape. The main structure of the fuselage is complete. Every resemblance to the

Read More »

Cockpit section longerons

The main longerons, stringers and corner blocks of the forward cockpit section are all installed. The longerons are divided into a forward and a main

Read More »

Upper longerons

The upper longerons are the longest structure elements built in one piece. Accordingly the length of the jig in which it was fabricated was extreme

Read More »

Contour shaping

Every longeron must be shaped to its round contour through planning and sanding. A very time consuming job. The radius templates were made on my

Read More »

Wing attachment ribs

Wings and fuselage will be glued together during final assembly and cannot be disassembled therafter. The connecting surfaces must be absolutely precise and therefore the

Read More »

Stringers

The curved belly shape of the fuselage indicates the projected weapons bay. This leads to some exciting stringer shapes.  Again: draw the curve on the

Read More »

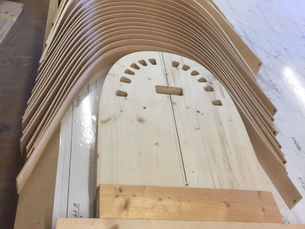

Main bulkheads

The center fuselage section carries two seriously dimensioned bulkheads. They will be attached to the main wing  spars and transfer the wing forces to the
